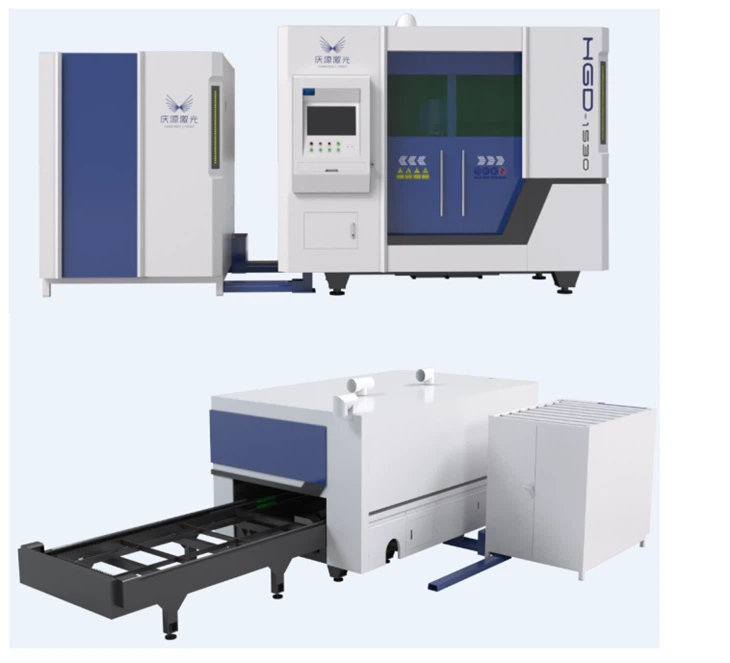

6KW 2060 Hloov Rooj Hlau Laser Tej Tshuab

Laser wavelength

1070nm ua

Lub zog siab tshaj plaws

6000W

Max Acceleration

1.2G

Kev siv fais fab

32 kwv

Max Ceev

Tib axis ceev Tsawg dua lossis sib npaug li 100m / min

Complex ceev Tsawg dua los yog sib npaug li 120m / min

Min Linewidth

{{0}}.15mm (rau cov ntaub ntawv thickness tsawg dua 0.4mm), nyob ntawm daim ntawv thickness

Txiav Thickness

MS: max 25mm, ntau lawm 22mm;

SS: max 18mm, ntau lawm 16mm;

Txiav Dimension

Lub Rooj Sib Tham Nrog Kev Tiv Thaiv Tag Nrho 2000 * 4000mm x 2

Txiav Table Mechanical Accuracy: ± 0.05mm

X, Y Repeated Positioning Precision: ± 0.02mm

Fais fab mov: Peb-theem 5 xov hlau AC 380V ± 5%, 50Hz / 60HZ ± 1%

Cua txias chav:

nrog tag nrho cov khoom siv hluav taws xob thiab laser qhov chaw sab hauv,

Kev rho tawm cua sov, plua plav cais tawm, pov thawj hluav taws

uas yuav ua kom lub tshuab ua haujlwm ruaj khov txawm tias 24 teev ua haujlwm txuas ntxiv, thiab ua kom lub neej ntev ntawm cov khoom siv hluav taws xob

Saib Xyuas Qhov System

Rau qhov zoo ntawm tus neeg teb xov tooj kev nyab xeeb

txhua qhov chaw tuag ces kaum tuaj yeem saib xyuas thaum txiav

raws sijhawm, cov txheej txheem tuaj yeem tswj tau.

PS: Lub koob yees duab tsis txheem nrog lub tshuab.

Lub ntsiab ncej txais lub gantry nqaj qauv, thiab lub rooj txaj yog tsim los ntawm welded los ntawm steel daim hlau, thiab cov kev ntxhov siab yog tshem tawm los ntawm T6 tshav kub kev kho mob, thiaj li hais tias lub zog, rigidity, servo tsav acceleration thiab deceleration thiab numerical tswj system yog heev matched.

Z-axis siv modular mechanism.

Txiav lub taub hau nrog Cooling Nozzle muaj nuj nqi

Nrog siab precision, siab zog, siab khiav stability thiab zoo sealing.

Tsis siv neeg lubrication system

Steel Phaj welded Structure, Thaum tshav kub kub kho.Advantage tsim.

Beam yog ruaj khov, nws yuav tsis deformation thaum khiav ceev ceev.

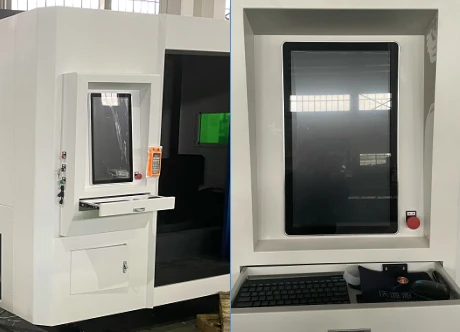

Lub console tuaj yeem txav tau yooj yim rau kev ua haujlwm.

Khaws ib qho chaw rau cov neeg siv khoom ntxiv WIFI receiver.

Loj portrait screen rau software thiab saib.
